Torques

Torques IO-360
Spark Plugs              360-420 inch-lbs (30-35 ft-lbs) 7/8 deep soc
Spark Plug Wire Caps     80-90 inch lbs (7 ft-lbs) 3/4 crows foot
Oil Drain Plug           160 in-lbs
Magneto Hold Down Nut    204 in-lbs (17 ft-lbs)
Fuel Servo Fuel Line     140 in-lbs (11/16 crows foot long extension)
Fuel Servo Fuel Screen   235 in-lbs (13/16 deep or 1/2 drive socket)
Exhaust Stud Nut         100-140 in-lbs antisieze (1/2 deep wobble)
Oil Screen Crush Gasket  135 degrees from finger tight contact
Alternator Output Term   85 in-lbs
Starter Terminal Nut     24 in-lbs
Cylinder Head Inj Nozzle 60 in-lbs
1/4-20 Case Nuts         96 in-lbs
Intake Flange Bolt       96 in-lbs

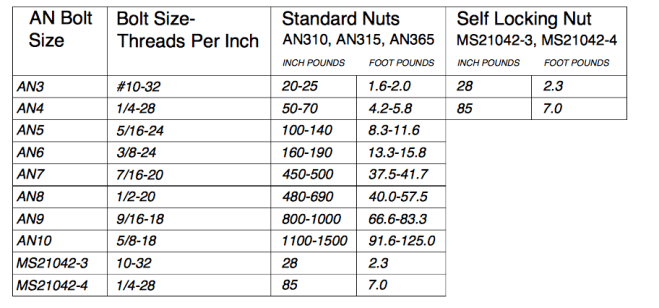

Screen Shot 2018-12-07 at 12.33.58 PM

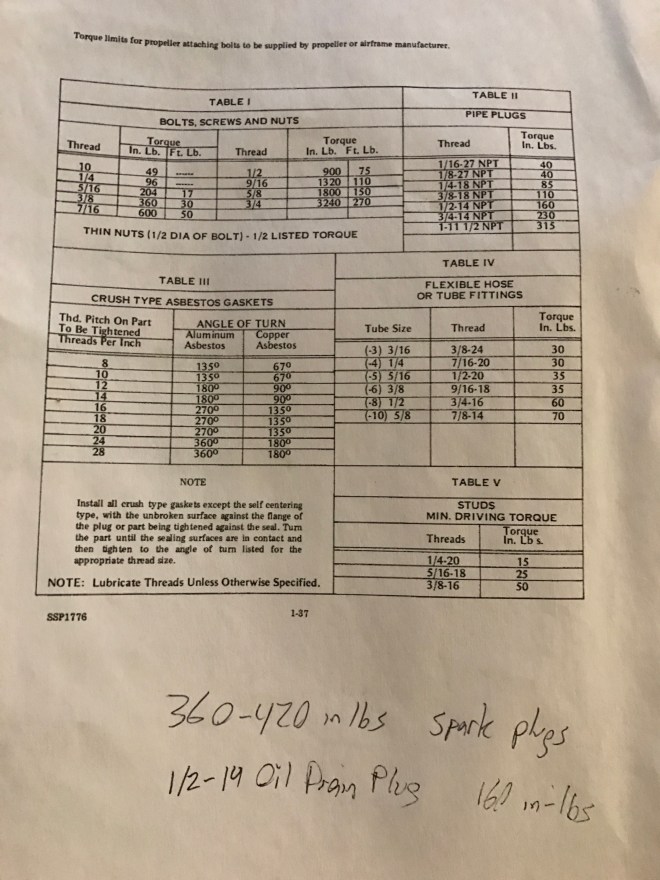

AC 43-13-1a/2a from 1988

NAS 1304 bolts 80-100 in/lbs (wing?)
NAS 1307 bolts. 520-630 in/lbs (wing?)

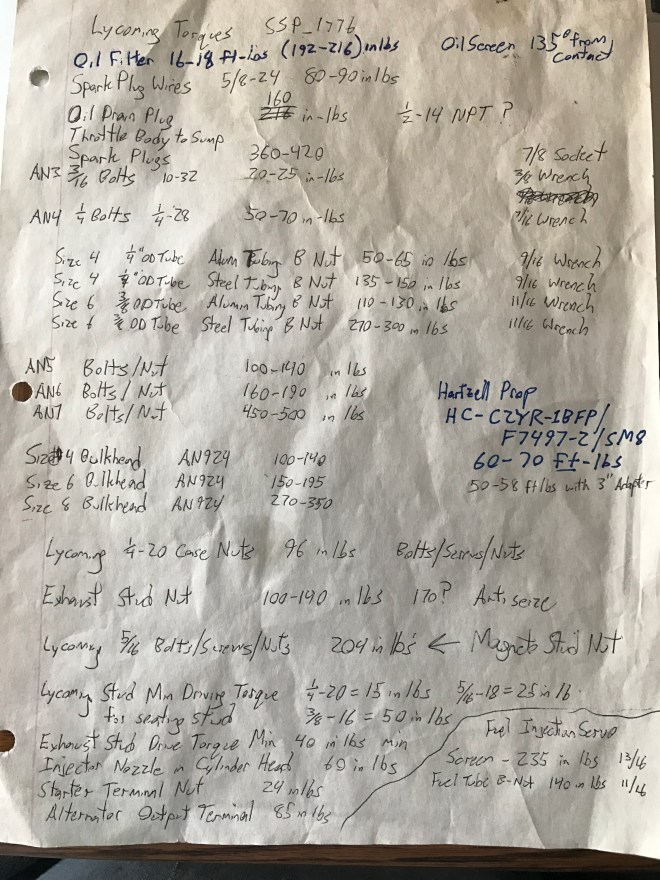

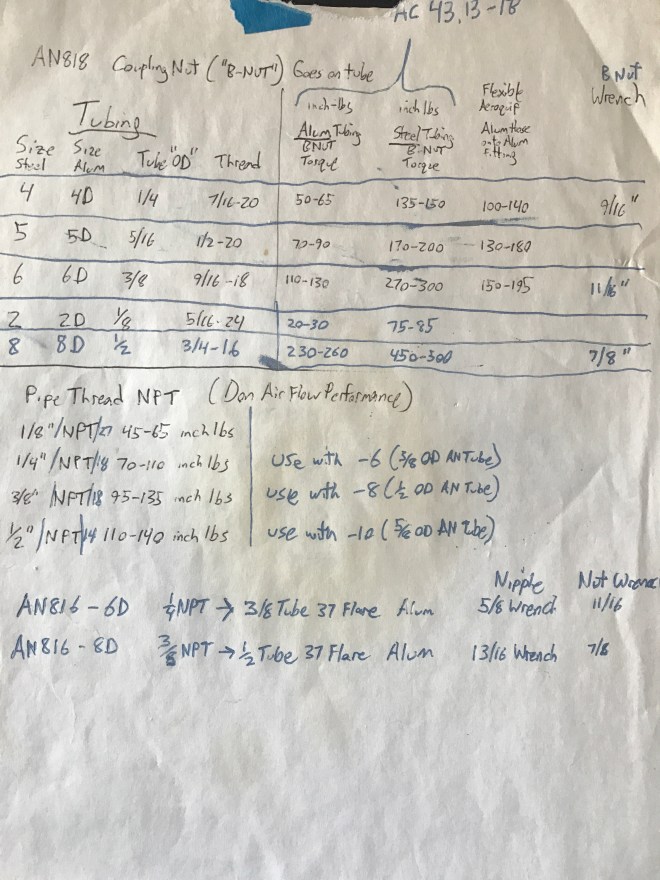

img_0077img_0080img_0081
