Flight 11 was a marathon — two and a half hours of precision circles for the airspeed calibration. Flight 12, six days later, was the opposite kind of flight: shorter, higher, and slower. The plan was to start working through the stability test cards, and the headline act was a slow-flight series flown higher than this airplane had ever been.
The Numbers
| Date | 2026-06-06 |
| Engine time | ~1.5 hr |
| Distance | 156.5 nm (GPS path) |
| Fuel used | 18.5 gal (totalizer) |
| Engine hours | 14.8 → 16.2 |
| Max altitude | 9,535 ft GPS — highest of the program (so far) |
| Cruise OAT | +58 °F (mild morning, ~13 °F warmer than F11) |
| Autopilot | ~94% of airborne time (more on that below) |
| Config | 7 qt oil; burn well under one tank, no tank switch |
Climb High, Fly Slow
The idea behind doing slow flight way up high is simple: altitude is recovery margin. If the airplane is going to do something rude at high angle of attack, I’d rather it do it with 9,000 feet underneath me than 3,000.

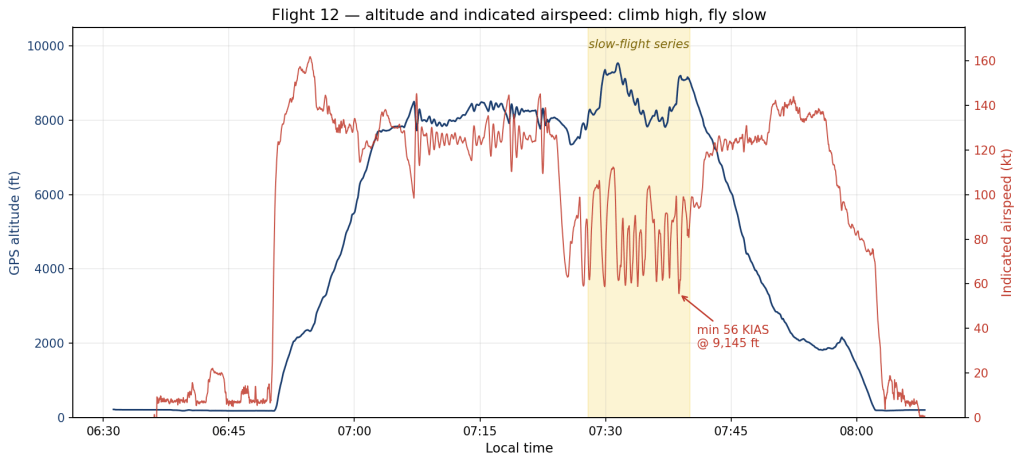

The profile chart shows the shape of the flight: climb out of Manassas, work in the mid-8,000s, then push up to the program-high 9,535 feet and settle into about thirteen minutes of slow-flight work between 9,100 and 9,500 feet. The red trace tells the story — a string of deliberate decelerations, each one walked down slowly, held, and recovered, over and over. The slowest stabilized point was about 56 KIAS at 9,145 feet.
That block wasn’t all straight-ahead slow flight, either. Working down the stability card deck — the FT-12/FT-13 card set is here (PDF) — the points included longitudinal static-stability checks at 55% power (trim the airplane, displace 10 and then 20 knots either side of trim, and watch how it comes back), flaps-up power-off stalls banked both ways at 10°, 20°, and 30° of bank, and a set of power-on stalls at 55% power. The power-on stalls turned out to be the interesting ones — more on that next.
Remember from Flight 11 that the airspeed indicator reads a knot and a half or so low down at these speeds — so true calibrated speed at that 56-knot point was around 58, and true airspeed at that altitude meaningfully higher still. The margins were real, which is the whole point of doing this work upstairs.
The Autopilot Kept Tapping Out
One genuinely interesting system behavior surfaced during the slow-flight series: the G3X autopilot repeatedly dropped offline with a “Fail / Inertial miscompare” annunciation, then re-engaged — about four minutes of dropouts across seventy airborne minutes, and the trigger was specific: the power-on stalls. It wasn’t just the autopilot being cautious, either — the attitude horizon itself tumbled several times during those stalls. In the data, the disagreement between attitude sources reached roughly 136° of roll — the worst cross-source split of the entire program. Outside the high-AoA block the autopilot was rock solid; it flew about 94% of the airborne time.
“Inertial miscompare” doesn’t mean the system knows which attitude source is lying. Per the G3X installation manual, data from the two ADAHRS units is continuously cross-compared and a disagreement is simply annunciated — the system flags the mismatch and lets the pilot sort it out. (Interestingly, the G5 standby only joins the comparison if the system has degraded to a single ADAHRS, so there’s no three-way vote while both primary units are alive.) Figuring out which unit is actually bad happens one level down: each ADAHRS runs its own internal integrity monitoring, and a unit that loses confidence in its own solution drops it and re-aligns — at which point the system switches over to the survivor. Long-time readers will recognize this as the ADAHRS-deviation theme that’s been running since the first five flights — it gets provoked by exactly this kind of high-AoA, low-airspeed maneuvering. The decision coming out of this flight’s debrief: change out AHRS #1 and see what the data says. The replacement unit went into the panel that same day. That story deserves its own post.
Carbon Monoxide: Best Slow-Flight Result Yet

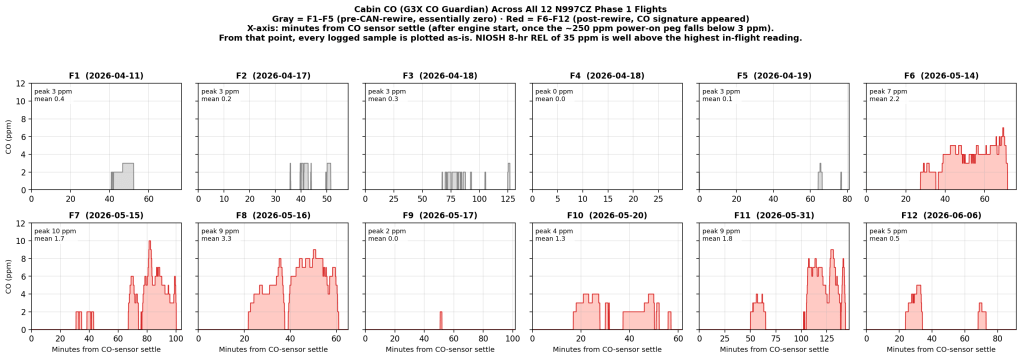

This one is encouraging. Every slow-flight-heavy flight since the CO detector went in has shown cabin CO in the 5–10 ppm range, consistent with the firewall heat-door leak theory. Flight 12 was the most slow-flight-intensive profile yet — and CO stayed benign: peak 5 ppm, mean 0.5.
Two honest caveats. First, the log shows a scary-looking 250 ppm spike — that’s the CO detector’s power-up warmup transient, recorded in the first ~50 seconds on the ground with the engine off, decaying steadily as the sensor warms. It’s a self-test artifact, not cabin air. (The trend script now auto-discards it.) Second, since I still haven’t flown the deliberate tape-the-heat-doors test, a quiet flight doesn’t tell me the leak is fixed — just that this profile, on this cool morning, didn’t pull much exhaust in. The isolation test stays on the list.
The Cylinder 5 Canary: Holding, Not Climbing
The air-dam saga continues, with a hopeful data point. Recap: before Flight 10 I removed the cooling air dam in front of cylinder 1, which fixed #1’s chronic heat but started costing cylinder 5 in the climb — its temperature-adjusted peak climb CHT marched 401 → 410 → 427 °F across Flights 9–11.

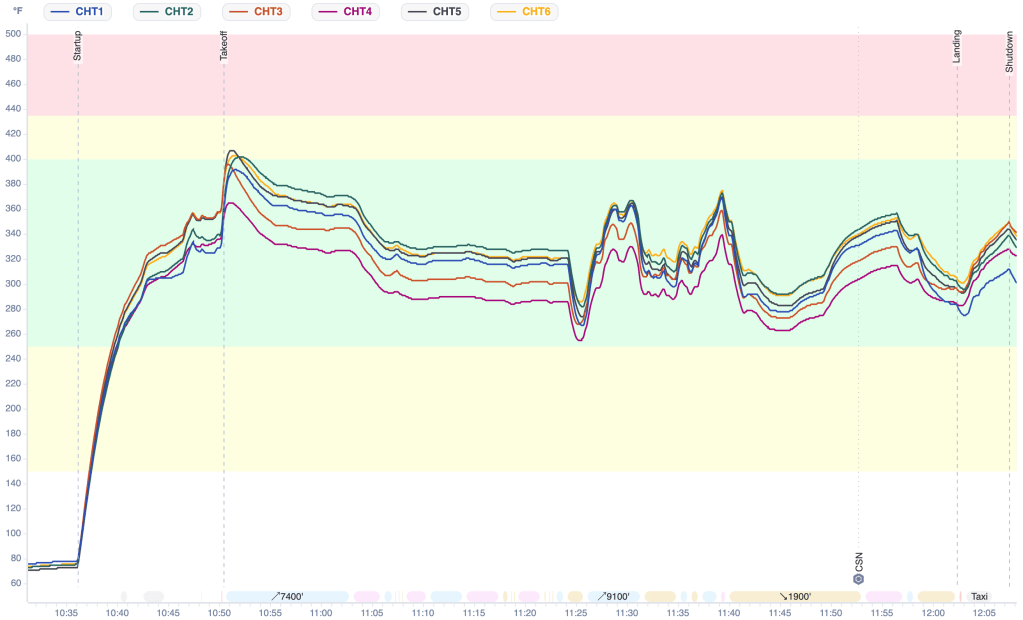

Here’s the whole flight at a glance, as FlySto renders it from the G3X log — all six cylinders, raw temperatures, with the comfort bands painted behind them. The climb-out spike just after takeoff is the hot moment of the flight, topping out around 407 °F, and everything spends the rest of the sortie comfortably in the green. You can even see the slow-flight series as that choppy stretch in the middle, and the brief dip to ~260 °F right before it — the power-off deceleration entries.
Flight 12: 408 °F. Still the hottest cylinder in the climb, but it fell back to roughly the Flight-10 level instead of continuing to rise — helped, no doubt, by climbing into cooler air up high. Meanwhile cylinder 1 keeps enjoying its freedom: coolest jug on the engine, with cruise temperatures (OAT-adjusted) down around 327 °F. Cruise CHTs across the board were the lowest of the program — the reward for flying high in cool air. Verdict: the canary is alive but still in the mine. Watching.
Fuel: The Totalizer Earns Its Keep Again
A small satisfying footnote. The totalizer said the flight burned 18.5 gallons; the fuel truck that topped the airplane off twenty minutes after shutdown delivered 18.30 gallons. That’s agreement to 0.2 gal, and it keeps the program-long truck-versus-totalizer reconciliation within a fraction of a gallon. The fuel-flow system has earned trust the fuel-quantity gauges haven’t (the right float is still stuck — see squawks).
Cruise mixture ran richer than Flight 11 — about 15.5 gph against 14.5 — mostly because I spent the flight flying maneuvers instead of babysitting the red lever.
Squawks
- Flap position sensor broke again — the May 31 workaround (remounting the worn pot to ride the healthy end of its range) didn’t hold, and this time the failure ran the other way: it wouldn’t let the flaps come up. On Flight 11 the same sensor had refused to put them down, forcing a no-flap landing. Two flights, two opposite refusals — enough. The fix chosen: reconfigure the VP-X so the flap switch works as momentary — hold the switch and the flaps drive up or down, no listening to the position sensor at all. (Since completed, with Dan’s laptop hooked to the VP-X.) The replacement for the 20-year-old Ray Allen pot stays on the parts list.
- VP-X pitch and roll trim speeds need to come down — trim runs too fast.
- AHRS attitude tumble / inertial miscompare under the power-on stalls — see above; next step chosen: swap AHRS #1.
- Right fuel-quantity float still stuck (known item; totalizer is the authority).
- Heat-door CO isolation test still not flown — benign CO this flight is encouraging but inconclusive.
And two items came off the list before this flight, in a Friday repair session: the upside-down left magneto switch from the Flight 11 squawks, and the remaining flap close-out work.
Bottom Line
Flight 12 took the airplane higher than it had ever been and slower than it usually flies, in the same thirteen minutes. The slow-flight handling was honest, the CO behaved, the cylinder 5 canary stopped climbing, and the totalizer matched the fuel truck to a couple tenths. The one system that complained — the autopilot’s inertial miscompare under high AoA — is the same attitude-source thread this airplane has been tugging since flight one, and it was about to get a lot more attention.
Engine time after Flight 12: 16.2 hours.
