Current TODO List

Update checklist & laminate

Add toolkit to plane

Make a POH

Install upper cowl air ramps

Install co-pilot stick

Do best glide speed test

Do max speed test

Install spare fuses

Calibrate AoA Probe

Block some of the heater air inlet to slow the heater air and keep more pressure in upper cowl



Wire fuses or fuseible link for ammeter shunt

Install prop leading edge tape

Get repariman certificate

Repair passenger side canopy air seal weatherproofing

Install IFR GPS Databases

Block more of the oil cooler

Download flight 6 data

Tape over the holes in the belly that may let fumes in

Get G3X Lean assist mode working/enabled

Install nutplates for 2 extra screws for upper landing gear fairing

Prime the spinner to protect from UV

Mount 1.3 lb. halon fire extinguisher

Mount the PLB

Register the PLB

Check EFIS V-speeds

Add checklist to phone

Test GoPro ships power

Test GoPro aviation radio audio

Get Iphone mount

Install wire booties to protect magneto P-leads

Order & install aileron pushrod boots (to prevent cold air infiltration)

Install autopilot roll servo

Connect autopilot pitch servo actuator arm

Glue canopy fiberglass front lip split

Install dynon d6 compass

Buy tire air filler extension

Left front cylinder, 1 engine bolt weeping oil (1 drop per hour)

Organize flight logs/receipts

Caulk or firedip the firesleeve ends

Buy Hoppe #9 Gun Cleaning Solvent for cleaning the injectors

Buy ultrasonic cleaner

Fold safety wire & cut clamp tangs

Make gaskets for outside front dash access panels

Get the EAA prop balancer and perform dynamic prop balance

Install main gear fairings

Positively retain the pins on main gear fairings

Seal lower antennas with caulk (Comm #2 & Transponder)

Order sandpaper

Order sanding blocks

Get aircraft polished

Record control surface deflections

Compute W&B for flights

Record serial numbers of all avionics

Record service bulletins on here

Document we swung the compass

Safety wire G3x harnesses

Document engine limits / color bands on here

Document fuel calibrations on here

Document fuel flow testing on here

Take screen shots of each EFIS screen and document on here

Get XM radio working

Trial Install GDL39

Link to or attach Bob’s first flight test info

Buy triple-A batteries

Buy power strip

Buy an instrument cover for behind the panel

Buy Cowl Plugs

Buy fuel tank drain plugs

Install forward floor carpet







Flight #22

6/2/16

Added 40 more pounds of water. This time to the baggage compartment. I’m walking the CG backwards a bit at a time from the 80.04 empty to the rear limit of 86.8. Takeoff for this flight was CG=84.3.

Basic Empty Weight LBS Arm Moment
Left Main

435

93.96

40872.6

Right Main

435

93.96

40872.6

Nose Wheel

296

39.11

11576.6

Empty

1166

93321.8

Empty CG

80.04

Max Limit LBS

1868.0

Max Limit Aero

1600.0

CG Limit Min

78.7

CG Limit Max

86.8

CG Limit Max Aero

84.5

Pilot Station

97.5

Passenger Station

97.5

Main Gear Station

94.0

Nose Gear Station

39.1

Fuel Station

80.0

W&B this flight @ takeoff:

Full Dummy 3
Empty Weight

1166

93321.8

Pilot

250

97.48

24370.0

Passenger

80 Water

97.48

7798.4

Fuel

252

80.00

20160.0

Baggage

40 Water

126.78

5071.2

Weight

1788

150721.4

CG

84.30

Left Main

736.5

Right Main

736.5

Nose Gear

315.0

Due to a visual on heavy rain to the west, decided to takeoff and stay in the pattern for 30 minutes. After 30 minutes of doing 8 takeoffs and landings in the pattern, it appeared the rain wasn’t moving in or getting any worse so I picked up the flight plan and departed to the west. Wind was from the east and keeping the rain to the west from approaching. Experienced rain in the RV for the first time deliberately during this flight since I could dart into and out of the showers (this was light rain falling from clouds high above). No apparent leaks. Flew along the edge of a line of rain with clear to the east (Fredericksburg) and rain showers to the west (Madison/Greene). Darting to the North allowed me to get out over Rappahannock to the west and circle Mom’s house for a bit.

Upped the G’s to 2.83 G’s max during a few maneuvers.

Times: 33.4/36.1 Before; 36.3/39.1 After

Flight Data

Flight Map

Rain pictures from the flight:

W&B @ Landing:

Landing Dummy 3
Empty Weight

1166

93321.8

Pilot

250

97.48

24370.0

Passenger

80

97.48

7798.4

Fuel

73.8

80.00

5904.0

Baggage

40

126.78

5071.2

Weight

1609.8

136465.4

CG

84.77

Left Main

670.1

Right Main

670.1

Nose Gear

269.7

Flight #9 – Oil Pressure Gauge – Offscale high

On March 12, 2016, I went to the airport with the intention of doing 3 takeoffs and landings to warm the oil for the engine’s first oil change. Taxi out and runup went fine. Oil pressure in the 50’s during idle and in the 70’s during fast taxi. The first takeoff and landing went fine with oil pressure in the 70’s and 80’s. But during taxi back for the 2nd takeoff, the oil pressure sensor went off scale high very rapidly. I considered shutting down in the runup block, but all other parameters seemed normal so I thought it would be safe to taxi back to the hangar for diagnosis.

During the taxi back to the hangar, the gauge continued to read off scale high. At the hangar, I shut down the engine, and didn’t think to check the gauge before powering off the avionics. I then reapplied power to the avionics with the engine off and noted the gauge had returned to zero.

The Kavlico oil pressure gauge, is a 3-wire device with red, black, and green wires. The red wire is +5V supply from the avionics, the black wire is ground, and the green wire is sensor output. I learned from reading that 0.5 volts out is likely 0 PSI, and 4.5 volts out is likely 150 PSI. Downloading the data showed that when it went off scale high it was reading 154 PSI. This might be an indication the output wire was getting shorted to the +5V.

I disconnected the wiring to the sensor on the firewall forward side and checked all connections for security and/or damage.

0.5 Engine Time, 1.0 Total Time (11.6/13.5 Cumulative)

Wrapping the wings in vinyl

Now 3/4 done with the wings and learning how to wrap better. I bought a rubber roller from the crafts store and that helps to push down and get the adhesive to stick with less chance of scraping the surface.

I tried using a spray polymer wax after finishing the right wing and that seemed to add a nice finish.

Aircraft Polishing Equipment

I’m just getting started, so don’t take this as recommended. This is just what I was able to pick up locally when I suddenly got the bug to try some polishing:

Griots 6″ random orbit polishing buffer & red foam pad. Since I’m cheap, I put microfiber cloths over the foam pad and used that to help keep the red foam pad from getting filled with polish and super dirty. I washed the first 24 or so cloths that I used in the washing machine. Bob on VAF says I should try TCP mixed with water in a 5 gallon bucket to soak prior to washing. I’m itching to try that, but haven’t found the TCP yet.

IMG_0623

White diamond metal polish. I don’t know if I’m doing a bad thing here using this since it has a “sealant”.

IMG_0622-2

Zwipes microfiber 16″x24″ cloths. These are pretty thin and not very plush, but what I was able to have on hand to start with. Bob on VAF told me the ones on perfect polish are “a MILLION” times better. I’m going to try picking some of those up.

Screen Shot 2016-01-05 at 7.09.14 PM

On order from amazon to try out:Screen Shot 2016-01-05 at 7.12.51 PM

Screen Shot 2016-01-05 at 7.13.23 PMScreen Shot 2016-01-05 at 7.13.11 PM

Griot’s Garage 11115 Micro Fiber Polish Removal Cloth – Set of 3:

Screen Shot 2016-01-05 at 7.17.27 PM

(5-Pack) **SPECIAL SALE** THE RAG COMPANY 16″ x 16″ Eagle Edgeless Orange Professional Korean 70/30 Super Plush 480gsm Microfiber Detailing Towels:

Screen Shot 2016-01-05 at 7.18.46 PM

Here is a quick before and after surface condition shot. This is about 3 minutes of work by hand, using the zwipe cloths and the white diamond polish. I apply a small amount of liquid polish to the metal and rub with the microfiber till the paste turns black. Then wipe off with two successive passes with clean microfiber cloths:

IMG_0624

Not close to mirror finish and not all scratches gone, but pretty good for 3 minutes by hand. It also took off the sharpie which I couldn’t even do with MEK:

IMG_0632

IMG_0633

Other items on order that I want to try out:

(10-Pack) **SPECIAL SALE** THE RAG COMPANY 16″ x 16″ Professional Edgeless 365 GSM Premium 70/30 Blend Microfiber Polishing and Auto Detailing Towels (Royal Blue)

Screen Shot 2016-01-05 at 7.37.42 PM

3″ random orbit buffer:

Screen Shot 2016-01-05 at 7.39.03 PM

3″ Pads. These I probably won’t cover with microfiber:

Screen Shot 2016-01-05 at 7.37.28 PM

Screen Shot 2016-01-05 at 7.40.32 PM

Screen Shot 2016-01-05 at 7.41.05 PM

Aircraft Polishing

Well, I certainly don’t know what I am doing, but I decided to polish the plane for a bit prior to committing to paint. I started with the right wing top surface:

IMG_0596

Since I don’t have the good stuff yet (Nuvite), I just did a quick pass with stuff available at autozone. I bought a 6″ random orbit buffer, some foam pads, and used microfiber cloths under the foam pads to apply the cleaning polish. My first goal was just to git rid of the surface oxidation and remove the discolored lines left from the removal of the blue plastic along each side of each rivet line.

Although this still looks like crap, it is 100% better than before where it was milky/blotchy with obvious marks on each side of the rivet lines:IMG_0588

Getting better:IMG_0594

IMG_0589

You sure go through microfiber towels quickly. I took these home to wash and it took two cycles in the washing machine.

IMG_0590

IMG_0591

Today (1/3/16), I did the left wing, with help from Rachel and Zack:

IMG_0604

Flight 8

Flight 8. Jan 3, 2016.

Woohoo, fuel vent leak fixed.

Preflight:

Added 1/2 quart of oil. Also found the source of my fuel smell. Last night when the FBO filled the tanks, they filled them so full that fuel was displaced when I reinserted the fuel caps (thats full!). However, this also caused more fuel than normal to burp out the fuel vents overnight. When doing the pre-flight today, I noticed fuel staining on the exterior fuselage side skin, below the root/leading edge of the wing on the right side. This coincided with the area where the fuel vent entered the fuselage. I pulled the wing root fairing expecting to find fuel staining inside the wing root area on the fuselage skin above where I saw the stains. However, there were no leaks on the outside of the fuse in the wing root area; (see clean picture above) it seemed to be coming from the fuselage skin seam between the side skin and the floor skin.

This led me to climb into the cabin and stick my head up under the panel with a flashlight and inspect the fuel vent on the inboard side of the fuse wall. Lo and behold there was some evidence of weeping fuel from the flare fitting where the 90 degree elbow attaches to the fuel vent tube. There are 4 of these vent tube connections inside the fuselage, and it turns out I hadn’t fully tightened any of the 4! This is probably the biggest mistake I have found in the build to date, and is a big blow to confidence to find 4 vent connections only finger tight (makes you wonder where else you missed something no matter how careful you try to be).

I tightened the one that was leaking at the wing root on the right side and its corresponding brother on the left side (connection was loose, and only minor evidence of fuel staining there). I also attempted to tighten the other two connections near the firewall where they exit the floor to the fuel vents. Harry helped me by holding a 11/16 wrench on the outside of the fuel vents while I tightened the nuts on the inside. Once the bulkhead fitting was tight, I was then able to tighten the flare fitting on each side.

Flight 8:

I filed for a 1 hour flight out of HEF (instead of my normal 1:30) just to check if the fuel smell issue was resolved. I’m happy to report that the issue seems to be cleared up. I’ll watch this as we go forward, but I’m 90% sure the issue is fixed.

During the flight I also managed some 65% and 75% cruise at 7,500. And also some slow flight at 70 KIAS and 80 KIAS flaps up. I did lots of left and right turns with 30 and 45 degrees bank.

Flight Data

Flight Map

1.5 hours engine, 1.5 hours electrical, 11.1/12.5 cumulative.

Post flight:

14 gallons dipstick on right tank. 10 gallons remaining dipstick on left tank. Fuel truck added 5 gallons to the right tank, and 9.9 gallons to the left tank. Dipstick then measured 20 gallons on the left tank, and 20.5 gallons on the right tank. I know these don’t add up perfectly, but such is the precision of dipsticking with 2 gallon intervals.

Also noticed during this flight I forgot to reset the fuel totalizer so the following measurement also includes the fuel burn from flight 7 (17.9 gallons). Fuel totalizer = 34.1 used, 25.8 remaining. Compensating for the 17.9 gallons from flight 7, leaves a totalizer measurement for this flight of: 34.1-17.9=16.2.

I forgot to download the flight data from the G3X so I will post that here later.

Oh, and I polished the top of the right wing the other day. This is what it looks like when the wing top is polished and the fuselage still looks crappy:

IMG_0596

Flight #7

Flight #7. Jan 2, 2016.

I preheated the engine for 1:20 and saw the oil temps increase from 41F to 52F. CHTs from 40F to 47F.

Today I flew 1.8 hours and tested a variety of level flight cruise power conditions. This is without wheel pants and without gear leg fairings (worth a reported 15 knots extra) and without a calibrated airspeed probe.

146 KTAS @ 2500 RPM @ 18.5″ MAP @ 12,000 feet MSL

148 KTAS @ 2600 RPM @ 18.5″ MAP @ 12,000 feet MSL

Descended to 8000 MSL

156 KTAS @ 2660 RPM @ 22″ MAP @ 8,000 feet MSL

This is about 180 MPH.

During the descent, I saw 177 KTAS (Vne=200 KTAS). This is about 204 MPH.

Flight Data

Flight Map

Again I noticed the fuel smell in the cabin on two separate times for just a few minutes. The first time was on climbout, and the 2nd time was during a left 180 degree turn. After reading quite a bit about possible sources for this smell, I learned on VAF that sometimes with full tanks the fuel vents can burp a few drops of fuel on the belly. The first time I smelled the gas on this flight was with both tanks full just after takeoff. The 2nd time I smelled it in the turn was approximately 45 minutes later, and I’m not sure if I was still on the first tank (leaving the 2nd tank still full to drip in a turn). Apparently, if the drips hit the belly, the fumes can get sucked into the flap pushrod holes due to the lower cabin pressure. I’m still not giving up on searching for weeping fittings, but this theory may also have some merit.

I performed a few stalls clean during this flight. I let these stalls get just a bit sharper and deeper than previous flight’s stalls, but I’d like to get spin training before I push this any further.

Most annoyingly, the Garmin G3x MFD rebooted in flight twice. This is almost certainly a software bug and it happened during me fiddling with the knobs and buttons and the same sequence of button presses and knobs caused it to happen again after the first reboot. All I had to do was: Press NRST. Defaults to rightmost page: Airspace. Spin the knob rapidly to the left (trying to get to NRST Airports). Boom: Instant reboot. This “feature” might really piss you off if you needed to find the nearest airport in a hurry! I’ll need to notify Garmin and see if there is a software update.

I did not notice any fuel pressure dips during this flight, but post flight looking at the data, I see one did occur dropping to 20.4 PSI. I’ll need to read up on this and determine if this is normal.

1.7 hours engine, 1.8 hours electrical. 9.6/11 cumulative.

Post flight:

Removed top and bottom cowl. Wiped brake reservoir overflow (this seems to be decreasing).

Right tank dipstick: 8 gallons. Left tank dipstick: 16 gallons.Fuel totalizer used 17.9 gallons (24.1 remaining). Right tank fuel truck added 13.35 gallons. Left tank fuel truck added 4.75 gallons. Reset totalizer. Set 42 gallons onboard.

Flight #6

Jan 1, 2016. Taped the hole in the lower cowl nose gear leg area to help prevent pressurization of the lower cowl area.

Prior to the flight, I installed 2 Reiff 100W oil sump heater pads (one on each side of the sump at the rear of the engine) and the thermostat’s ceramic cube on the back of the engine oil sump (in the center rear). I ran the heater for less than an hour this morning and saw the oil temp and CHTs rise a few degrees from 50 to 53. It looks like it is working, and this is plenty warm for starting.

Today I flew for 1.7 hours. I did 2 stalls clean, 2 stalls at 15 deg flap, 2 stalls at 30 deg flap, and 2 stalls at 45 deg flap. Stalls at 45 deg flap have a tendency to drop the right wing slightly.

I did at least two climbs from 4,000 to 10,000 feet MSL under various RPM settings and power settings.

I tested the cabin heater valve. It heats but not a whole bunch.

Noticed a fuel vapor smell in the cabin during initial climb (this smells different from an exhaust smell). This has been a recurring event and I am trying my best to locate the source. Since I sealed the remaining holes in the firewall prior to this flight, it doesn’t seem like it is coming from the engine compartment (and there are no fuel leaks in the firewall forward area that I can find. Bob says fuel vapor can frequently can come from the wing root areas and into the cabin around the aileron pushrod holes (there is positive pressure in the wings and it forces air into the cabin under the seat pans. I pulled the wing root fairings (external) several flight ago and found no evidence of fuel leaks at the wing root connections. Other ways can be if the fuel tank is leaking at the back baffle and running down the inside lower surface of the wing to the wing root area. From there if it is more than a drop or two, it can run into the fuselage cabin floor since the cabin floor underlaps the wing for a few inches (I think). I can’t find any evidence of this happening. I plan to pull the fuel selector valve covers and the fuel pump cover and look for evidence of drips around those connections. The smell doesn’t last for long and is lessened when I open the cabin fresh air vents (in rush air may help pressurize the cabin slightly).

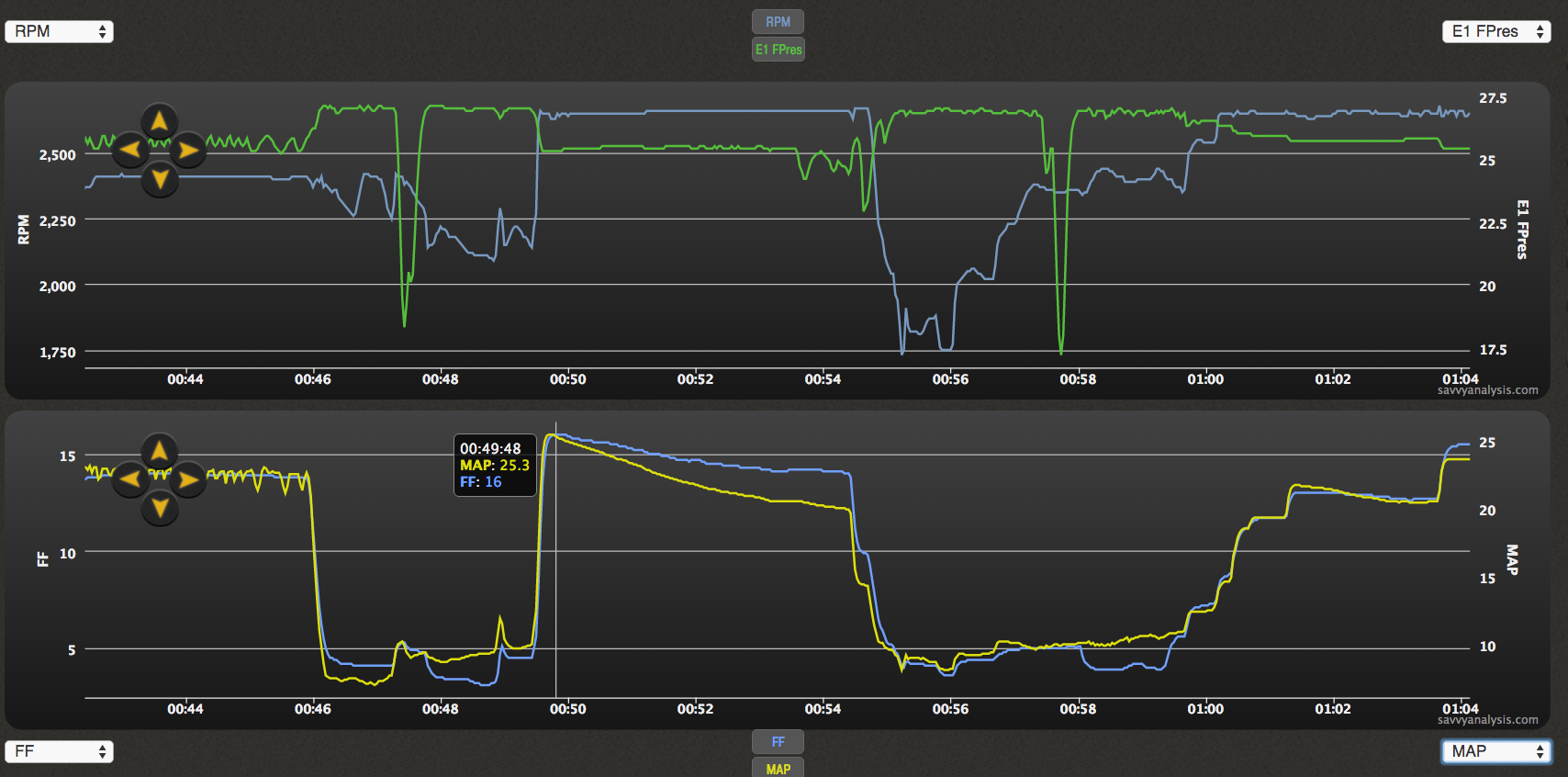

I also noticed occasional fuel pressure dips. You can see the two dips in green here (dropped to about 18 PSI):

Screen Shot 2016-01-02 at 4.38.00 PM

Oil temp was also fairly cold on this flight (150’s & 160’s). I’d prefer to see 180 and I already have 1/4 of the oil cooler air inlet taped over.

Full data from flight

Map from flight

1.6 hours engine time. 1.7 hours electrical time.  7.9/9.2 cumulative.

Post flight:

Post flight fueling: 8.7 gals right tank from fuel truck. 10.6 gals left tank from fuel truck. Right tank 20 gals dipstick. Left tank 21 gals dipstick.

Wiped overflow on brake fluid reservoir.

Put foil tape on 4 holes in the lower fuselage surface where the upper gear intersection fairings mount (but are not currently installed) in an attempt to block any vapor entry in this location.

Added 0.25 quarts of oil to bring the oil above 6 quarts.



Flight #5

Pre-flight prep work: Dave Haschart met me at the hanger at 07:00 and helped with preflight; Thanks Dave! Removed upper & lower cowl, inspect FWF. New heat scat tube mounting looks to be doing well. Reinstalled upper & lower cowl. Attached tape to front cowl noses to see if it helps with not pressurizing the lower cowl area and improves CHTs. Also added tape to block 1/4 of the oil cooler. Tire pressures: L: 32.0, R:31.5, N:31.0. Preflight inspection completed.

I flew four laps around the pattern and performed 3 landings with 15 degrees flap and 1 landing with 30 degrees flap. This plane lands beautifully. I haven’t had a bad landing yet or even so much as a hop/skip, but I’m sure they are coming. The winds have always been calm so far. My takeoffs / go arounds however still leave much to be desired. I haven’t mastered keeping the nose wheel off the ground but not WAY off the ground. Thus when I accelerate on the go after a landing, I either lift off early or let the nose wheel touch. I’m trying to work on getting the hang of the right amount of stick back pressure.

After the 4th landing, when retracting the flaps, I got a red flap fault warning. I taxied back to the hangar to check things out. After shutdown, I reset the flap fault on the VPX (it was a flap runaway; which means the flap motor ran longer than it was supposed to). Turns out it was the up limit on the flap sensor that wasn’t being met, and the flaps kept running when I retracted them. This was the same condition that Mark Gramann noticed on the flap down side, which I corrected earlier by adjusting the down flap limit. It looks like I will need to adjust the up flap endpoint also. I should use this as an opportunity to check that the installation of the flap sensor is not shifting and to permanently install the pop rivets holding the flap sensor.

Flight Data

Flight Map

Post flight 5: Found overflowed brake fluid around the firewall reservoir (will continue to watch this and see if it stops when the reservoir is 1/2 full). Also found some weeping brake fluid connections on the pilot and passenger right brake pedal master cylinder lower connections. I don’t have the best luck with NPT fittings I guess. I have used Locktite 567 when screwing the 90 degree elbows into the gold brake pedal master cylinders, but was afraid of turning them in too hard and probably undershot. I plan to tighten these two fittings and apply Locktite 567 again. Unfortunately, I will have to bleed at least the right side brakes again.

Engine Total Time 6.3, Total Time 7.5, This flight: 0.5/0.7. Oil was at 6.0 quarts (hot). Left tank dipstick was at 16.5, and fuel totalizer said 3.7 used, but I did not fuel or reset totalizer after this flight.

12/13/15: Riveted flap sensor in place. Adjusted the flap up and down stops to be 8 units backed off from actual end points. Adjusted the flaps to run for 0.2 seconds after reaching the backed off stops. This should ensure the stops get triggered and the flaps stop running after an additional 0.2 seconds. Prior to last flight I reversed this roll trim end points so the indicator was indicating properly, but since I didn’t reverse the motor polarity, now the trim indication was moving in the opposite direction of the hat switch. I reversed the motor polarity after this flight, and now finally I think the trim will be running in the correct direction. I also added new baffling extending forward a few more inches on cylinder #1 and #2 towards the top cowl front.
